Type 97 "Chi-Ha"

Description

The Chi-Ha was the most common Japanse medium tank of World War II. Due to its lack of a powerful main gun, it was no match for the US Medium Tank, M4.

The Shinhoto Chi-Ha was an upgraded version of the Chi-Ha, which had re-designed turret to fit a new gun. A total of 2208 Chi-Ha and Shinhoto Chi-Ha were made.

The Chi-Ha was replaced by the Type 1 "Chi-He".

Technical Details

  Chi-Ha Shinhoto Chi-Ha
Crew
Crew 4
Physical Characteristics
Weight 15 t 15.8 t
Length 5.55 m
Width 2.33 m
Height 2.28 m 2.38 m
Armour
Armour (range) 20-25 mm
Performance
Speed (max) 38 km/h
Armament
Primary weapon Type 97 57 mm (1) Type 1 47 mm (1)
Secondary weapon Type 97 7,7 mm (2)

Images

Photographs and some information provided by Takashi Tamane.

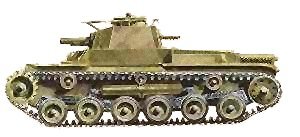

Drawing of a Chi-Ha.

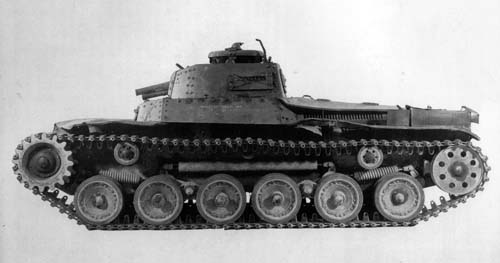

Profile view of a Chi-Ha.

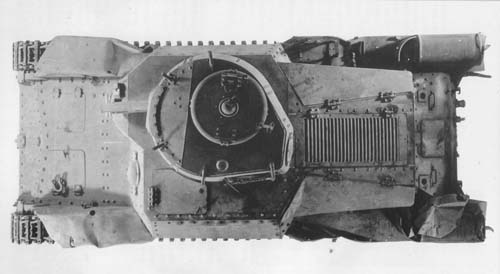

Top view of a Chi-Ha.

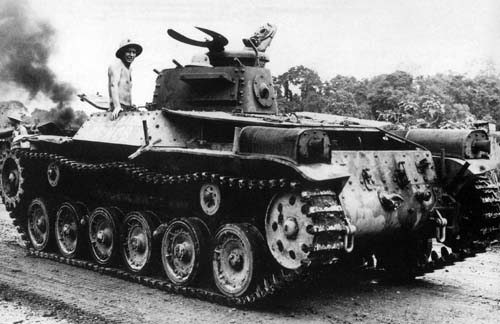

Captured Chi-Ha
Large column of Chi-Has

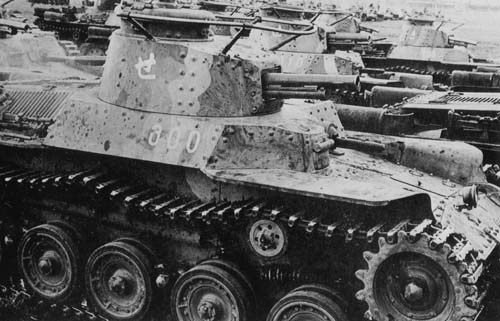

Good view of the rivets of a Chi-Ha
Good view of the camouflage and insignia of a Chi-Ha
Profile photograph of a Chi-Ha Kai, showing the right side

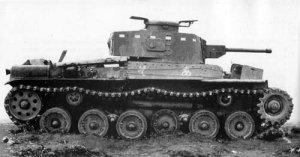

Left side profile photograph, clearly showing the rearwards-pointing machine gun

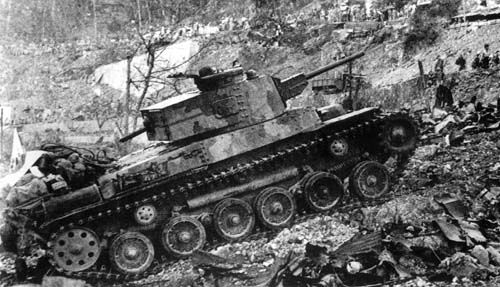

Chi-Ha Kai driving up a hill

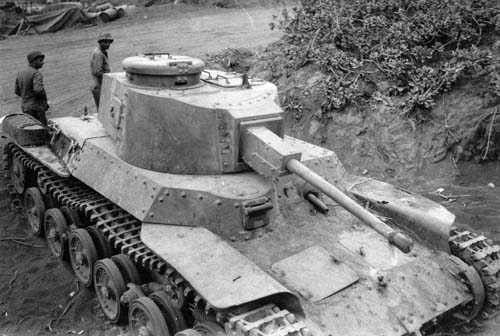

Captured Chi-Ha Kai, with a good view of the engine deck

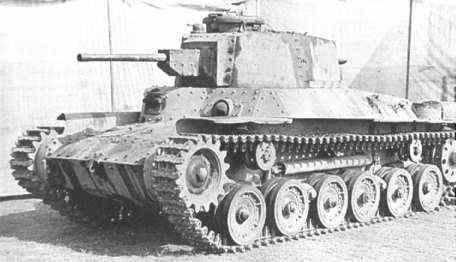

Same vehicle as above, seen from the front
