Leichter Zugkraftwagen 1 t (Sd Kfz 10)

Description

The Sd Kfz 10 was a small half-track tractor designed during the mid-thirties. It was used throughout the was on all fronts and various duties, including towing light anti-tank guns, anti-aircraft guns and field guns.

A total of about 14 000 Sd Kfz 10's were built from 1938 until the war ended. The most notable variant was the Sd Kfz 10/4 and Sd Kfz 10/5, equipped with a 2 cm Flak 30 and a 2 cm Flak 38, respectively.

Technical Details

Leichter Zugkraftwagen 1 t (Sd Kfz 10)
Crew
Crew
  • Driver
  • Co-driver
  • Passengers (6)
Physical Characteristics
Weight 4.9 t
Length 4.75 m
Width 1.93 m
Height 2 m
Performance
Speed (max) 65 km/h
Engine
Engine Maybach HL 42 TRKM
Net h.p. 100
Cylinders 6
Displacement 4200 cc

Images

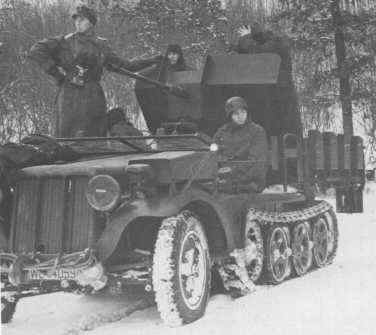

Two Sd Kfz 10/4 in the snow.

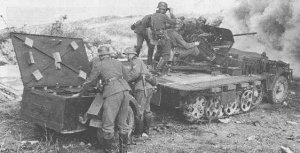

Sd Kfz 10/4 in firing position.
